Módulo fuente de poder Hi-link HLK-PM01

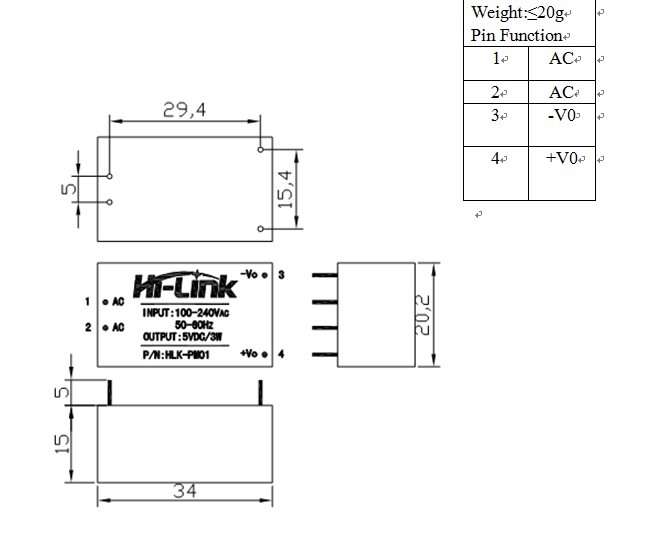

Características:

1. Cumple los requerimientos de UL y CE
2. Diseño ultra compacto
2. Amplio rango de entrada (AC: 90 ~ 264V)
3. Bajo ripple y bajo ruido
4. Protección contra sobrecarga y cortocircuito
5. Alta eficiencia
6. Cumple los requisitos de EMC y pruebas de seguridad
7. bajo consumo, pérdidas sin carga <0.1W

Requisitos de Operación:

Item Name	Technical Criteria	Unit
Operation Temperature	-20—+60	℃
Store Temperature	-40—+80	℃
Relative humidity	5—95	%
Cooling way	Cooling by radiation
Atmospheric pressure	80—106	Kpa
Sea level elevation	≤2000	m
Vibration	Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes

Características Eléctricas (a 20°C):

Item Name	Technical Criteria	Unit
Rated input voltage	100-240	VAc
Input voltage range	90-264	VAc
Maximum input current	≤0.2	A
Input current surge	； ≤10	A
maximum input voltage	≤270	VAc
Enter slow start	≤50	mS
Input Low Voltage Efficiency	Vin=110VAc，Output full-load≥69	%
Input High Voltage Efficiency	Vin=220VAc，output full-load≥70	%
Long-term reliability	MTBF≥100，000	h
Load rated output voltage	+5±0.1	VDc
Full rated output voltage	+5±0.2	VDc
Short-term maximum output current	≥1000	mA
The maximum output current for a long time	≥600	mA
Voltage Regulation	±0.2	%
Load Regulation	±0.5	%
Output ripple and noise (mVp-p)	≤50 Rated input voltage, full load. Using 20MHz of bandwidth, The load side 10uF and 0.1uF capacitor to be tested.	mV
Switch overshoot amplitude	(Rated input voltage and output load plus 10%)≤5	%V_O
Output over-current protection	150-200% of the output maximum load	A
Output short circuit protection	Direct short circuit at the normal output, automatically resume normal operation after a short circuit removal

Características de Seguridad:

Safety and electromagnetic compatibility
Designed with the input of 0.5A UL certified insurance;
PCB board using double-sided copper clad plate production, material for the 94-V0 fire rating level;
Safety standards: Compliance with UL1012, EN60950, UL60950
Insulation voltage: I / P-O / P: 2500VAC
Insulation resistance :I / PO / P> 100M Ohms / 500VDC 25 ℃ 70% RH
Conduction and radiation :comply with EN55011, EN55022 (CISPR22)
Electrostatic discharge :IEC / EN 61000-4-2 level 4 8kV / 15kV
RF radiation Immunity: IEC / EN 61000-4-3 See Application Note
